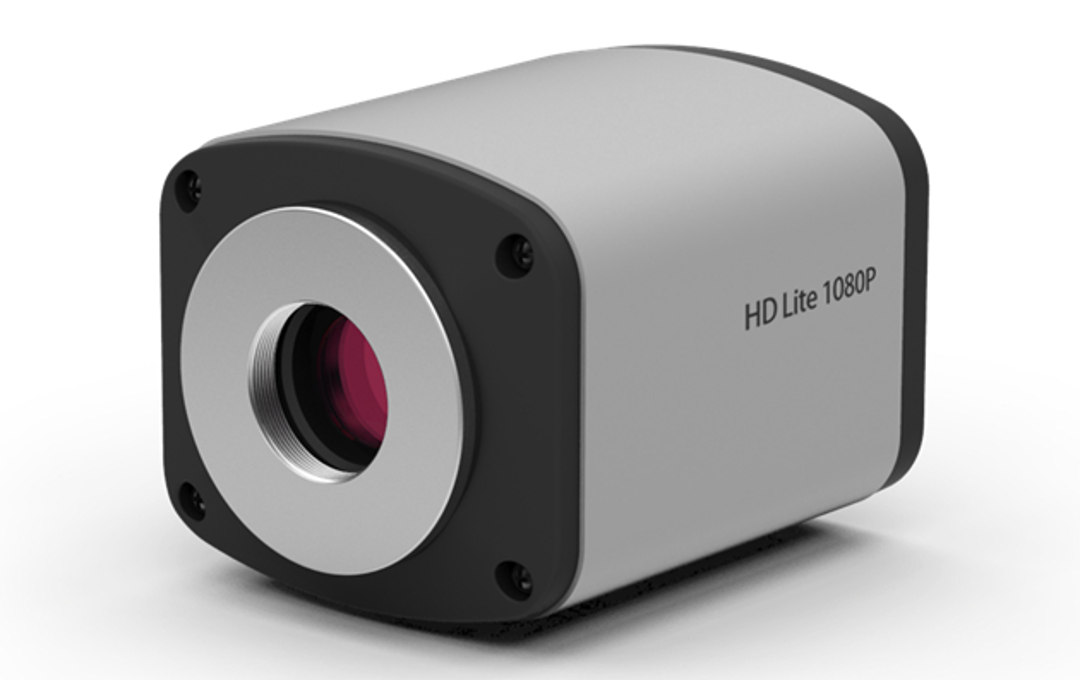

HDMI/USB Microscope Camera TUCSEN HD LITE

Product number: TUCSEN-HD-LITE
Ready for shipping

HDMI/USB Microscope Camera TUCSEN HD LITE

The HD LITE is the lite version of TUCSEN's flagship TRUECHROME HD. The difference is mainly on the one side in the used image sensor (instead of the SONY IMX236 of Truechrome HD this model uses an Aptina MT9P006 Sensor) and in the processsing power as this model achieves e.g. 15 fps in HDMI mode (instead of 60 fps).Despite these compromises the performance of this camera for most applications is more than adequate and provides a very cost-effective solution with 5 megapixel sensor and HD picture quality.

Multi-Signal Output: The camera can be connected directly to a HDMI monitor (standard use) or alternatively to a PC (via USB connection). You can also use both outputs in parallel as it provides the signal to both all the time. In both modes, the camera offers high refresh rates, ideal to keep track of microscopic movements and record them.

Flexible Exposure Times: In addition to the auto-exposure, you can adjust the exposure time and the gain manually. The exposure time can be set between 1 ms and 10 seconds (step: 1 ms).

Zoom – Mirror - Compare: Both the on-screen menu (HDMI mode) and the PC application (USB mode) provide zoom function and the possibility of mirroring the picture horizontally and vertically. By choosing the comparison function, half of the monitor (vertically divided) shows the live view and the other half shows an already captured image you selected.

Zoom and comparison

Built-in Mouse Control is a special feature of this model: in HDMI mode the supplied mouse can be connected to the USB port on the camera. With the mouse you can then activate the on-screen menu and record with his help, photos and adjust all the camera settings.

Mouse Control Function

Fast Video-Recording: The camera achieves recording in HDMI mode 15 fps at 1080P.

Built-In Player: Previously taken pictures and videos are stored on the SD card in the camera. You can view and play them from the camera to the HDMI monitor using the gallery function - no PC is required!

Sample Captures

The following images have been captured using OPTIKA microscopes - SZR-10 (Industrial), B500-TDK (Darkfield), B500-TIPH (Bright Field).


360° Product View

Technical Specifications

  • Sensor: APTINA MT9P006 (1/2.5") 2592×1944
  • Frame Rate (USB): 15fps (1920x1080)
  • Frame Rate (HDMI): 15fps (1920x1080)
  • Video capture: 1080p 15fps (on SD or PC)
  • Exposure range: 0.001 sec - 10 sec
  • White balance: automatic
  • Outputs: HDMI, USB 2.0, SD card
  • Compatibility: Windows 7/8/10 (32/64 Bit)
  • Physical interface: c-Mount
  • Weight (g): 260
  • Size (cm): 9 x 7,5 x 6,5

Package Contents

  • Camera
  • CD with software ISCapture for Windows (english)
  • HDMI cable
  • USB cable
  • power supply 12V/2A
  • USB mouse
  • SD card
