USB Microscope Camera Dino-Lite AM7025X

USB Microscope Camera Dino-Lite AM7025X

The DinoEye Edge 5MP eyepiece camera provides superior image quality and true colour reproduction. This makes this new DinoEye suitable for demanding applications where true colour reproduction is of the utmost importance, like with pathology samples or quality control.

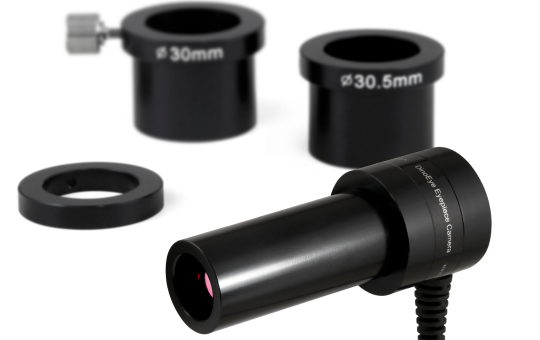

The large field of view allows you to capture more details with one image. You can replace one of the eyepieces of the microscope by the Dino-Eye camera which has a diameter of 23mm, or you can use one of the provided adapters of 30mm or 30,5mm to make it fit.

Additionally you can use the c-mount thread that is included with the 30,5mm adapter to be able to connect the DinoEye to the c-mount adapter (not included) on the Trinocular tube of the microscope. The AM7025X eyepiece camera will therefore fit to almost all microscope brands and models available. The AM7025X comes with DinoCapture software for Windows and DinoXcope software for MAC, which includes measurement, annotation, video and time-lapse functions.

Technical Specifications

• Sensor: CMOS 5 MP (2592x1944)
• Frame Rate (max): 30 fps
• Output: USB 2.0
• Compatibility Windows OS: Windows XP/7/8/10 (32/64 Bit)
• Compatibility other OS: MacOS 10.4 or later (not all Software functions are available for MAC)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MAC): PNG, JPG
• Supported video formats (MAC): MOV
• Connection: c-mount or through eyepiece
• Weight (g): 117

Contents

• Camera
• CD with software Dino Capture
• USB cable
• Carry Pouch
• Calibration Target
