USB Microscope Dino-Lite AM8917MZT

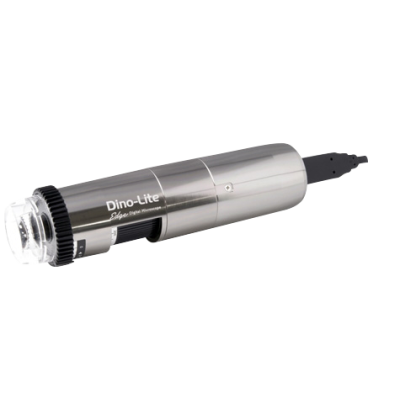

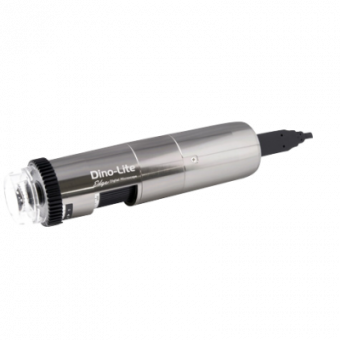

Dino-Lite AM8917MZT USB Microscope

Main Features

The Dino-Lite AM8917MZT is one of the high-end models of Dino-Lite. It offers 8 MP resolution, superb uncompressed image quality and color reproduction in a robust, compact and appealing metal housing.

Series - This model belongs to the Dino-Lite Edge PLUS series. The Edge Series offer superior image quality for professional applications through the latest sensor technology. The high-quality lens delivers a very sharp, bright and natural color image with very low image errors and vignetting.

High Resolution - This model has a 8 megapixel sensor for crystal clear images - even at higher magnification. Due to the high resolution, it is the ideal solution to display microscopic images on large screens or to use the microscopic images for printing

Reflection suppression - One of the biggest strengths of this model is polarization. Polarizer models are ideal for inspecting objects that strongly reflect light (such as glass or shiny metal surfaces). By switching on the polarization, which can be infinitely adjusted from 0-100%, the reflections are eliminated and more specimen details become visible.

Extended depth-of-field (EDOF) - One-touch generation of a series of pictures with images of different foci. The software then produces an image with extended depth of field within a few seconds. You can also use the EDOF function in manual mode and take the individual pictures manually.

Advanced Dynamic Range (EDR) : highlights details of darker or brighter areas within the object by layering images of different exposures.

FLC - The flexible light control allows the user to dim the 8 LEDs of the Dino-Lite Microscope through the software in steps or turn on/off groups of them. The user can thus react even more flexibly to disturbing reflections on the object in order to obtain the optimum result.

AMR - The automatic magnification reading feature is especially useful if you take measurements often, as the actual magnification value will be automatically read by the software and not typed in manually.

Software - In conjunction with the included Dino Capture software, you can record microscopic photos and video sequences at the touch of a button and take measurements on the captured image (e.g., distances, areas, angles, etc).
